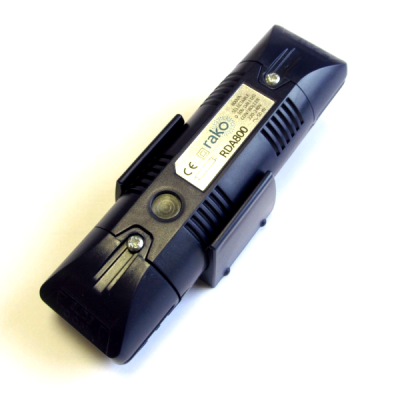

Rako Wireless Lighting RDA800 - 0-10V, DALI, DSI Light Dimmer

List Price	£164.00 Exc VAT
	Qty

	Rako Wireless Lighting RDA800 - 0-10V, DALI, DSI Light Dimmer Features
	Rako Wireless Lighting Control RDA800 - 0-10V, DALI, DSI Light Dimmer. Designed for use with LED or Fluorescent lamps fitted with a 0-10V or DALI or DSI dimmable ballast / controllers
	16 user programmable light scene levels
	Use as part of a Mood Lighting scene setting configuration
	Smooth cross fading between scenes
	Multi-way dimming and switching from many locations
	RDA800 replaces RDF800C, RDDALI, RDDSI

	Lamp Types - Selectable
	Dimmable LED Lamps fitted with 0-10V, or DALI or DSI Dimmable Controller
	Fluorescent Lamps fitted with 0-10V, or DALI or DSI Dimmable Ballast
	In addition to 0-10vdc, DALI or DSI dimming output, this unit also provides 230vac mains switching ( up to 800 watts load ). This is important, so when zero dimmed level is selected, the 230vac mains supply is also switched off to ballast or controller.
	DO NOT MIX LAMP TYPES ON A CIRCUIT !
	Technical
Voltage	220-230VAC
Dimming Capacity	up to 25 dimmable ballasts / Controllers - Switched load 800 watts
Light Circuits	1
Size (H, W, D) mm	172 x 40 x 46
Communication	RAKOM Coded FM Radio - 433.9MHz
Address	256 house and 256 room addresses
Channels	Up to 15 per room using a keypad for configuration
Channels	Up to 60 per room using RASOFT Pro Software for configuration
Order Code	Rako Wireless Light Dimmer - RDA800
