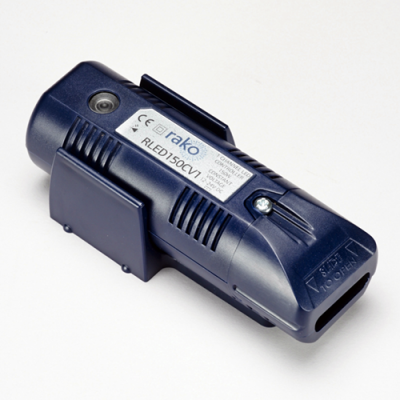

Rako LED Lighting RLED150-CV1 - Single Channel 150w LED Driver

List Price	£203.00 Exc VAT
	Qty

	Rako Wireless Lighting RLED150-CV1 - Single Channel 150w LED Driver Features
	Rako Wireless Lighting RLED150-CV1 - Single Channel 150w LED Driver for Constant Voltage Dimmable LED Lamps
	Light fittings using constant voltage LEDs generally use a standard DC power supply. These power supplies have a fixed output and Rako’s DC dimmer (RLED150-CV1) fits between the power supply and the LEDs.
	LEDs can be wired in series to a maximum of 150 Watts
	16 user programmable light scene levels
	Use as part of a Mood Lighting scene setting configuration
	Smooth cross fading between scenes plus soft start
	Multi-way dimming and switching from many locations
	Eco Features
	Save electricity when dimming - (dimming at example 50% uses about ~52% electricity)
	LED lamp give high performace light output and low power consumption.
	Standby Mode Uses > 1Watt - (very efficient and very eco-friendly system)

	Lamp Types
	Dimmable Constant Voltage LED Lamps
	DO NOT MIX LAMP TYPES ON A CIRCUIT !
	Technical
Voltage	12 - 48Vdc
Dimming Capacity	150 Watts
Light Circuits	1
Size (H, W, D) mm	138 x 40 x 46
Communication	RAKOM Coded FM Radio - 433.9MHz
Address	256 house and 256 room addresses
Channels	Up to 60 per room using RASOFT Pro Software for configuration
Channels	Up to 15 per room using a keypad for configuration
Order Code	Rako Wireless Lighting RLED150-CV1
