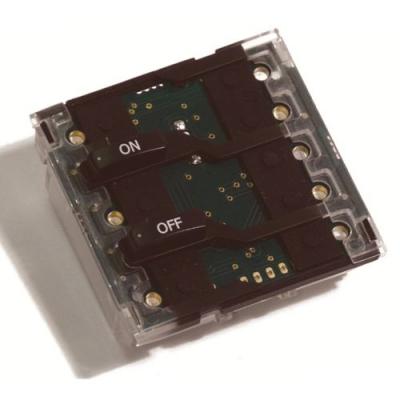

Rako Wireless Lighting RNC-020 - 2 Button Keypad for FocusSB Morpheus Faceplace
Rako Wireless Lighting RNC-020 - 2 Programmable Button Keypad for FocusSB Morpheus Faceplace, Includes Batteries
| | Rako Wireless Lighting RNC-020 - 2 Button Keypad Features |
 | Rako Wireless Lighting RNC-020 - 2 Programmable Buttons. Each button can be programmed for light scenes, channels or macros |
| Wireless unit using lithium batteries - locate this any where in the room |
| Simple to retro-fit to existing conventionally wired schemes |
| Use as part of a Mood Lighting scene setting configuration |
| Smooth cross fading between scenes. Simple system configuration can be performed by non technical staff |
| Flush mounting to BS Standard back boxes. Optional 12mm Deep surface mounting back box not included |
| Long battery life (in excess of 3 years), easily replaced by the user |
| IMPORTANT NOTE: This device requires the RAMPI and Rako RASOFT Pro Software for configuration |
| Hard plastic buttons which match with the Rako lighting RCM and WCM wired keypads. This allows wireless and wired keypads to be installed together for seamless operation. |
| 6 Finishes
 White Metal
 Brushed Stainless Steel
 Polished Stainless Steel
 Polished Brass
 Black Nickel
 Chocolate Bronze
|
| | Advance Features |
| Each button is individually programmable using the Rako RAMPI interface with Rako Pro Software. |
| Each button can recall; a light scene, control an individual channel, control whole house lights, or a macro function |
| Each button can be assigned with 1 action; a short press/release or long press |
| Each button can be assigned with 2 actions; 1 action for short press/release, and a second action with a long press |
| Each button can recall blind controls; open, close, stop |
| | Technical |
| Voltage | 6V (2 x 3V Lithium coin cells CR2016 ) |
| Back Box Type | BS Standard back boxes |
| Size (H, W, D) mm | 88 x 88 x 12 |
| Communication | RAKOM Coded FM Radio - 433.9MHz |
| Address | 256 house and 256 room addresses |
| Channels | Up to 60 per room using RASOFT Pro Software for configuration |
| Range | Transmitting range of 15m in building (100m line of sight) |
| Order Code | Rako Wireless Lighting RNC-020 - 2 Button Keypad |
| | Package |
| Unit | 1 |
| Warranty | 12 Months |
| Delivery Time | Stock Item |
| | Options |
| 6 faceplate choices |
| White Metal with Black Buttons |
| Brushed Stainless Steel with Black Buttons |
| Polished Stainless Steel with Black Buttons |
| Polished Brass with Black Buttons |
| Black Nickel with Black Buttons |
| White or Black Euromod (50x50) Insert with Black Buttons |
| Chocolate Bronze with Black Buttons |
£30.00 EU delivery
